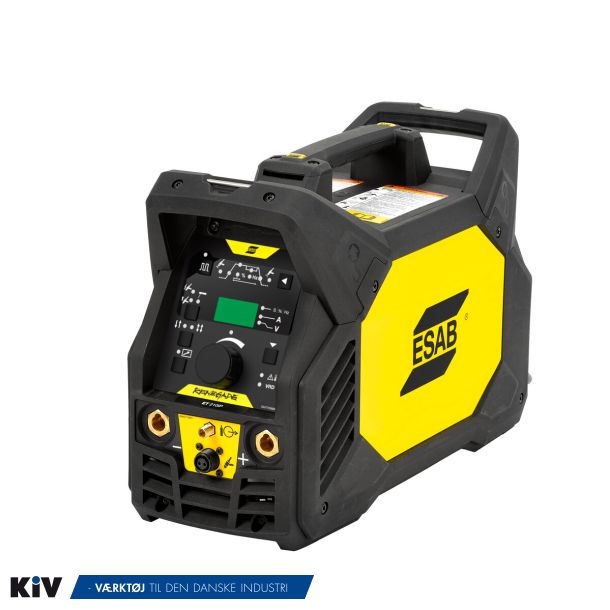

Esab svejsemaskine Rogue ET200iP Pro TIG inkl. kabelsæt Tilbud
0700500081
Inkl. 4 mtr. TIG-brænder SR-B 26
1-2 dage
Renegade ET is a professional single phase, high frequency start TIG and MMA welding machine with the most resistant IP23 housing designed to be used in demanding environments. Equipped with a high-quality carry strap with multiple lift points, Renegade is ready to move with you when portability is required.
Renegade ET have a build in active PFC circuit that allow to work perfectly even on a poor-quality power supply and on very long extension cables (up to 100 m).
Superior weld quality is a priority in this range, additionally supported by direct access to wide parameters selection on simple and intuitive user interface makes machine very easy to work with.
| Voltage | 115/230 VAC 1, 50/60 Hz |
| MMA Welding Output | 110 A / 24.4 V (115 VAC) @ 25 % Duty Cycle 71 A / 22.8 V (115 VAC) @ 60 % Duty Cycle 55 A / 22.2 V (115 VAC) @ 100 % Duty Cycle 180 A / 27.2 V (230 VAC) @ 25 % Duty Cycle 116 A / 24.6 V (230 VAC) @ 60 % Duty Cycle 90 A / 23.6 V (230 VAC) @ 100 % Duty Cycle |
| TIG Welding Output | 140 A / 15.6 V (115 VAC) @ 25 % Duty Cycle 90 A / 13.6 V (115 VAC) @ 60 % Duty Cycle 70 A / 12.8 V (115 VAC) @ 100 % Duty Cycle 210 A / 18.4 V (230 VAC) @ 25 % Duty Cycle 135 A / 15.4 V (230 VAC) @ 60 % Duty Cycle 105 A / 14.2 V (230 VAC) @ 100 % Duty Cycle |
| Open Circuit Voltage | 78 VDC |
| Power Factor at Maximum Current | 0.99 |
| Protection Class | IP23 |
| Setting Range MMA/DC | 20.6-24.4 V (15-110 A) 20.6-28.4 V (15-180 A) |
| Setting Range TIG/DC | 10.4-18.4 V (10-210 A) 10.4-15.6 V (10-140 A) |
| Fuse Slow | 16 A |
| Energy Save Mode | <30 W |
| Supply Plug | CEE 16 A |
| Operating Temp | -10 to +40 °C |
| rated kVA | 6 kVA 3.3 kVA |
| Recommended Generator | |
| Rated Output | |
| Dimensions, L x W x H | 460 x 200 x 320 mm |
| Weight | 11 kg |
