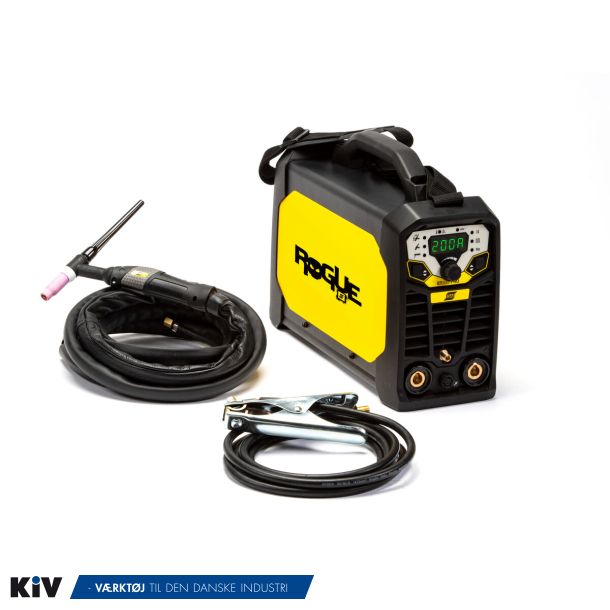

Esab svejsemaskine Renegade ET200iP TIG inkl. kabelsæt Tilbud
0447700911
Inkl. 4 mtr. TIG-brænder SR-B 26
1-2 dage
Rogue ET is a powerful and easy to handle entry level high frequency start TIG machine. It has been designed with ESAB DNA code which gives great robustness locked in very compact housing.
Lightweight, ergonomic handle, carry strap and long extension cables make Rogue ET the ideal solution for field applications. All variants of machines are suitable to work with generators (7kW).
Rogue ET performs with exceptional arc characteristics, both in TIG and MMA mode. There is a broad number of advanced parameters that can be adjusted in TIG: gas pre flow, start current, ramp up time, ramp down time, finish current and post flow. All of these can be worked with 2 or 4 stroke mode. Additionally the PRO version has a pulsing feature with frequency from 0,2 Hz up to 500 Hz for better heat input control. In MMA, user can adjust Hot Start or Arc Force, to match his best welding preferences or application. All of this can be quickly adjusted by simple and intuitive user interface.
| Voltage | 230 VAC 1, 50/60 Hz | |
| Max Output | 180 A | |
| MMA Welding Output | 170 A / 26.8 V @ 20 % Duty Cycle - A / @ 25 % Duty Cycle 97 A / 23.9 V @ 60 % Duty Cycle 75 A / 23.0 V @ 100 % Duty Cycle |
|
| TIG Welding Output | 180 A / 17.2 V @ 25 % Duty Cycle 116 A / 14.6 V @ 60 % Duty Cycle 90 A / 13.6 V @ 100 % Duty Cycle |
|
| Current Range | 10-180 A | |
| Open Circuit Voltage | 63 V | |
| Standards | CE | |
| Protection Class | IP23S | |
| Energy Save Mode | 30 W | |
| Operating Temp | -10 - +40 °C | |
| Dimensions, L x W x H | 403 x 153 x 264 mm | |
| Weight | 8.7 kg |
