| Designation | h1 | h | b | l1 | l2 | f |
| 16.0 | 16.00 | 16.0 | 100.0 | 27.0 | 20.00 | |

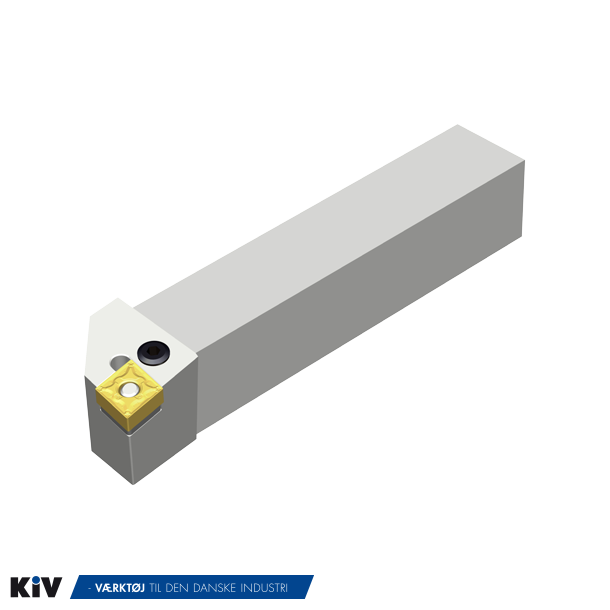

| PCLNR 1616 H12 | 16.0 | 16.00 | 16.0 | 100.0 | 27.0 | 20.00 |
| PCLNL 2020 K12 | 20.0 | 20.00 | 20.0 | 125.0 | 27.0 | 25.00 |
| PCLNR 2020 K12 | 20.0 | 20.00 | 20.0 | 125.0 | 27.0 | 25.00 |
| PCLNL 2525 M12 | 25.0 | 25.00 | 25.0 | 150.0 | 27.0 | 32.00 |
| PCLNL 2525 M16 | 25.0 | 25.00 | 25.0 | 150.0 | 32.0 | 32.00 |
| PCLNR 2525 M12 | 25.0 | 25.00 | 25.0 | 150.0 | 27.0 | 32.00 |
| PCLNR 2525 M16 | 25.0 | 25.00 | 25.0 | 150.0 | 33.0 | 32.00 |
| PCLNL 3225 P12 | 32.0 | 32.00 | 25.0 | 170.0 | 27.0 | 32.00 |
| PCLNL 3225 P16 | 32.0 | 32.00 | 25.0 | 170.0 | 33.0 | 32.00 |
| PCLNL 3232 P12 | 32.0 | 32.00 | 32.0 | 170.0 | 27.0 | 40.00 |
| PCLNL 3232 P16 | 32.0 | 32.00 | 32.0 | 170.0 | 33.0 | 40.00 |
| PCLNR 3225 P12 | 32.0 | 32.00 | 25.0 | 170.0 | 27.0 | 32.00 |
| PCLNR 3225 P16 | 32.0 | 32.00 | 25.0 | 170.0 | 33.0 | 32.00 |
| PCLNR 3232 P12 | 32.0 | 32.00 | 32.0 | 170.0 | 27.0 | 40.00 |
| PCLNR 3232 P16 | 32.0 | 32.00 | 32.0 | 170.0 | 33.0 | 40.00 |
